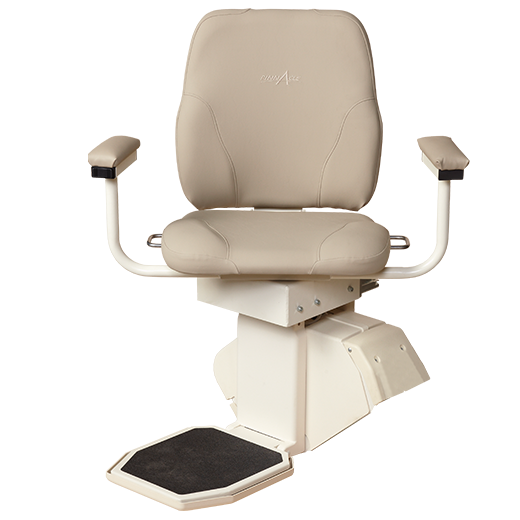

Harmar Pinnacle Stair Lift HD [HARSL600HD]
click to enlarge
| Drive Type | Helical Worm Drive |
| Battery Powered | Yes |
| Self Installable | Yes |
| Basic Installation Included | No |
| Standard Capacity | 600 lb |
| Max Track Length, Standard | 15.5' |
| Max Track Length, Optional | 40' |
| Track Material | Clear Anodized Aluminum |
| Rail Angle, Min | 32° |
| Rail Angle, Max | 52° |
| Seat Width | 24" |
| Seat Depth | 16" |
| Swivel Seat | Yes |
| Flip-Up Seat | Yes |
| Flip-Up Armrests | No |
| Call Stations Included | 2 Wireless |
| Constant Pressure Controls | Yes |
| Footrest Safety Sensor | Yes |
| Digital Diagnostics Display | No |
| Warranty | 3-Year on Components, 10-Year on Rack , 1-Year on Batteries |
| Key Lock | Yes |
Track Lengths Selection: 15' (180") is Standard *
* Actual track is 7" longer. A 7" overrun is required to allow safe entry/exit from seat onto the landing at top of stairs.
$0.00
15' (180") of Track
$0.00
Length in inches if Shorter than 180" (allow +7" for entry/exit)
$0.00
Additional Track (Maximum 70' Including the 15' Standard Track)
Up to 3' of Additional Track
$250.00
Up to 5' of Additional Track
$393.00
Up to 7'9" (93") of Additional Track
$536.00
Additional Brackets (comes with standard)
Standard Brackets
$29.00
Tall Brackets
$29.00
Options
Track Cut to Custom Length (Required for any track cut)
$143.00
Key Lock on Chasis
$143.00
Seatbelt Extension
$100.00
Manual Lowering Tool
$50.00
Call Stations
Top & Bottom Call-Send Stations
$0.00
Orientation (looking UP the staircase)
The stair lift will be on the left
$0.00
The stair lift will be on the right
$0.00
Installation
NOTE: We do not perform installations in Oregon. For residents in Oregon, please choose self-installation at checkout
$0.00
Self Installation
$0.00
Nationwide Installation
$599.00
Nationwide Installation and Measurement Service
$749.00
Double Stair Lift Installation Service - Per Stair Lift
$437.50
Stair Lift Removal and Disposal
$499.00
Installation Special Cases
Installation On Concrete, Steel, or Tile Stairs
$300.00
Installation In Remote or Limited Access Location
$345.00
Measurements
Please enter measurements in feet or inches. Customers using the Measurement Service can skip this step.
$0.00
1. Overall length
$0.00
2. Top stair to bottom stair
$0.00
3. Staircase width
$0.00
4. Bottom clearance
$0.00
5. Rise of one step
$0.00
6. Tread of one step
$0.00
7. Diagonal
$0.00
8. Door at the top
$0.00
Need help measuring? Please see our "How to Measure" page.
